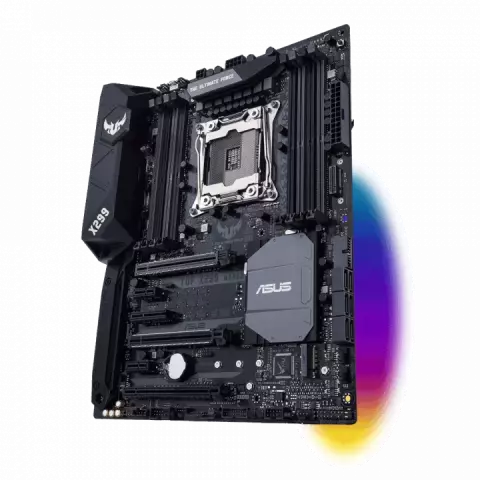

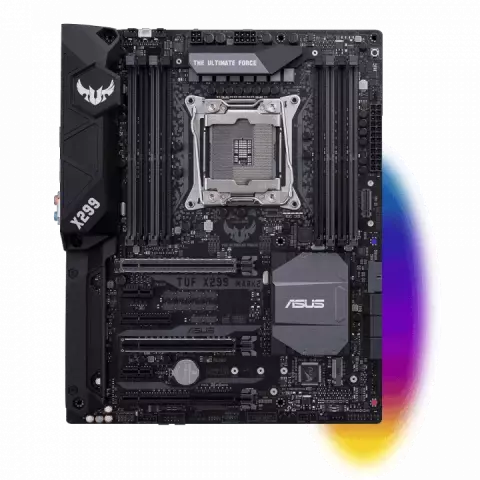

مادربرد Asus DDR4 مدل TUF X299 MARK 2

LGA2066

1 عدد

Intel X299

X-Series Processors

8 عدد

DDR4

4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz

128 گیگابایت

Intel Core X-series Processors (6-core above) : 8 x DIMM, Max. 128GB, DDR4 Intel Core X-series Processors (4-core) : 4 x DIMM, Max. 64GB, DDR4 Non-ECC, Un-buffered Memory

Supports NVIDIA Quad-GPU SLI Technology Supports NVIDIA 3-Way SLI Technology Supports NVIDIA 2-Way SLI Technology

Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Raid 0, 1, 5, 10

Intel I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN ASUS Turbo LAN Utility

Realtek ALC S1220A 8-Channel High Definition Audio CODEC

44-Lane CPU 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) 1 x PCIe 3.0 x4 (max at x2 mode) 2 x PCIe 3.0/2.0 x1 28-Lane CPU 2 x PCIe 3.0/2.0 x16 (x16, x16/x8) 1 x PCIe 3.0 x4 (max at x2 mode) 2 x PCIe 3.0/2.0 x1 16-Lane CPU 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x4 (max at x2 mode) 2 x PCIe 3.0/2.0 x1

1 عدد

2 عدد

4 عدد

4 عدد

1 عدد

5 عدد

1 عدد

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x AAFP connector 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x M.2_FAN connector 1 x VROC_HW_Key 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x 5-pin EXT_FAN(Extension Fan) connector 2 x 3D Mount screw port(s) 1 x CPU_OV jumper

OC Design - ASUS PRO Clock Technology TUF Features: TUF ENGINE! Power Design : - 7 +1 Digital Phase Power Design - TUF Components (Choke, Cap. & MOSFET; certified by military-standard) Ultimate COOL! Thermal Solution : - TUF Thermal Armor - Thermal Radar 3 Safe & Stable! Guardian Angel : - TUF ESD Guards 2 - TUF LANGuard AURA : - Aura Lighting Control - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - MemOK! - AI Suite 3 - Ai Charger - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Turbo LAN File Transfer - Cloud GO! - File Transfer ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector

30.50 سانتیمتر

24.40 سانتیمتر
