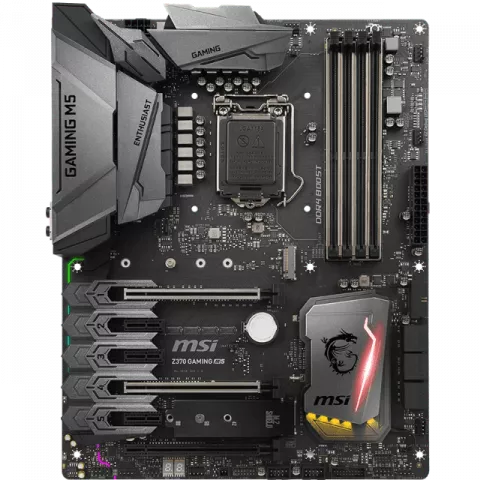

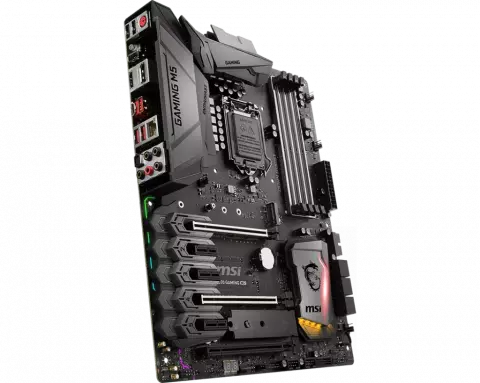

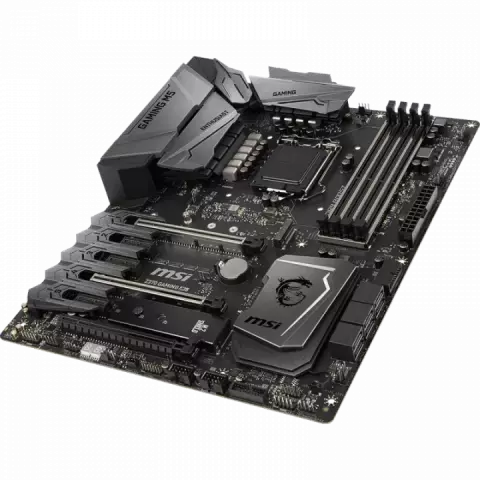

مادربرد MSI DDR4 مدل Z370 GAMING M5

LGA1151

1 عدد

Intel Z370

Supports 8th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors

4 عدد

DDR4

4000+(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2667/ 2400/ 2133 MHz

64 گیگابایت

Supports Dual channel memory architecture Supports non-ECC, un-buffered memory

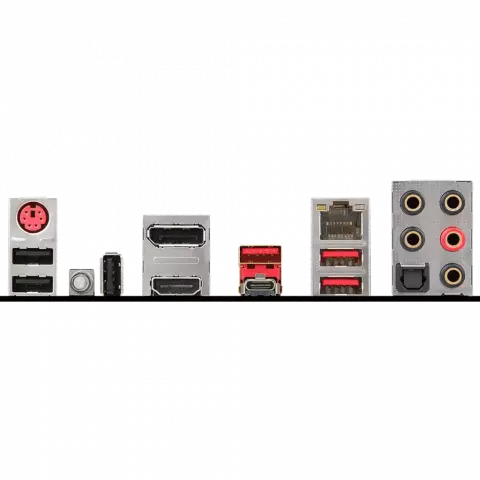

DisplayPort, HDMI

HDMI port, supports a maximum resolution of 4096 x 2160@30Hz, 2560x1600@60Hz DisplayPort, supports a maximum resolution of 4096 x 2304@24Hz, 3840 x 2160@60Hz,1920X1200@60Hz

Supports 2-Way NVIDIA SLI Technology

Supports 3-Way AMD CrossFire Technology

3 عدد

2 x M.2 slots

6 x SATA 6Gb/s ports

RAID 0, 1, 5,10 / Supports RAID 0 and RAID 1 for M.2 storage devices

1 x KillerTM E2500 Gigabit LAN controller

Realtek ALC1220 Codec

3 x PCIe 3.0 x16 slots

1 عدد

1 عدد

1 عدد

1 عدد

1 عدد

2 عدد

3 عدد

1 عدد

5 عدد

1 عدد

1 x BIOS FLASHBACK+ port 1 x Clear CMOS button

ATX

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x M.2 slots 1 x 4-pin CPU fan connector 1 x 4-pin water pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x Front panel connectors 1 x RGB LED connector 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x BIOS FLASHBACK+ button 1 x 2-Digit Debug Code LED 1 x LED power input connector

دارای قابلیت RGB

30.50 سانتیمتر

24.40 سانتیمتر
