2 x M.2 ports (Key M)
M2_1 slot supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon processors)
M2_2 slot supports PCIe 2.0 x4
پورت SATA 6Gb/s
6 عدد
SATA RAID
RAID 0, 1, 10
مشخصات تراشه شبکه
Dual Realtek ALC1220 Codec
مشخصات تراشه کارت صدا
1 x Killer E2500 Gigabit LAN controller
سایر پورت ها
2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
1 x U.2 port
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Supports Bluetooth 4.1

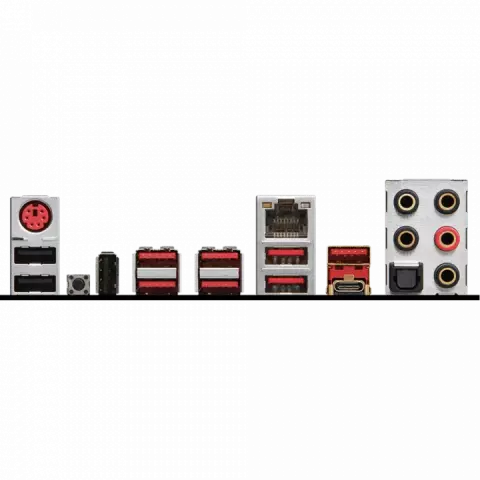

پورت های پنل پشت
پورت مشترک موس و کیبورد PS/2
1 عدد
پورت USB 3.1 Type-A
1 عدد
پورت USB Type-C
1 عدد
پورت USB 3.0 Type-A
4 عدد
پورت USB 2.0
2 عدد
پورت شبکه RJ45
1 عدد
پورت صدا
5 عدد
پورت S/PDIF out
1 عدد
سایر پورت ها
1 x Clear CMOS Button
1 x BIOS FLASHBACK
2 x VR Ready USB 3.1 Gen1 Ports
PS/2 GAMING Device Port
مشخصات فنی
فرم فاکتور
ATX
کانکتورهای داخلی USB
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen2 connector (supports additional 1 USB 3.1 Gen2 Type C port)
سایر کانکتورهای داخلی
1 x 24-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
1 x 4-pin CPU fan connector
1 x 4-pin PUMP fan connector (supports up to 2A)
4 x 4-pin system fan connectors
1 x RGB LED connector
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x Serial port connector
1 x Flash BIOS button
1 x Clear CMOS jumper
1 x 2-Digit Debug Code LED
قابلیت RGB
مشخصات فیزیکی
طول
30.40 سانتیمتر
عرض
24.30 سانتیمتر
