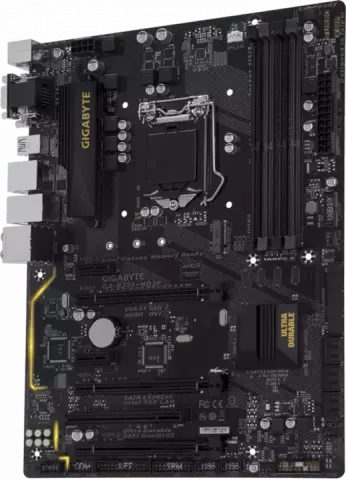

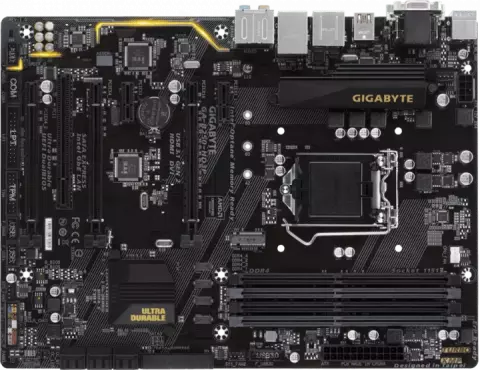

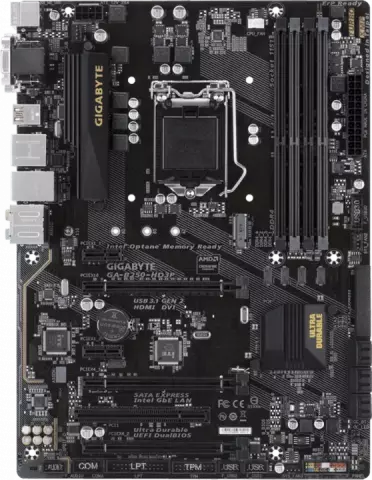

مادربرد Gigabyte DDR4 مدل GA B250 HD3P

LGA1151

Intel B250

Support for 7thand 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron
L3 cache varies with CPU

DDR4

2400 / 2133 MHz

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

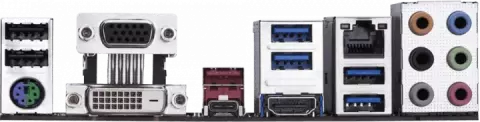

D-Sub / DVI-D / HDMI

Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies (PCIEX16

PCIEX4_1)

1 x M.2 connector (Socket 3

M key

type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

1 x SATA Express connector

Intel® GbE LAN chip (10/100/1000 Mbit)

Realtek® ALC892 Codec

2 x PCI Express x1 slots
1 x PCI Express x16 slot

running at x16 (PCIEX16)
2 x PCI Express x16 slots

running at x4 (PCIEX4_1

PCIEX4_2)

1

1 x USB 3.1 Gen 2 Type-A port (red)
1 x USB Type-C™ port

with USB 3.1 Gen 2 support
2 x USB 2.0/1.1 ports

ATX

1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
1 x SATA Express connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
3 x system fan headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module (TPM) header
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

- Support for APP Center (3D OSD-@BIOS-Ambient LED-AutoGreen-BIOS Setup-Color Temperature-Cloud Station-EasyTune-Fast Boot-Game Boost-ON/OFF-Charge-Platform Power Management-Smart Backup-Smart Keyboard-Smart TimeLock-System Information Viewer-USB Blocker-V-Tuner)
- Support for 3TB+ Unlock
- Support for Q-Flash
- Support for Xpress Install
