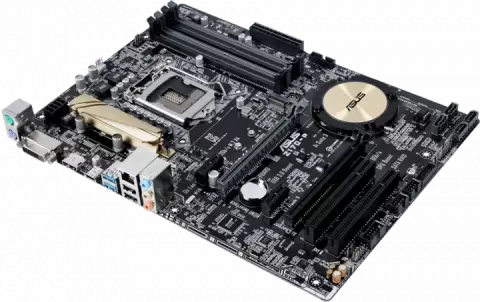

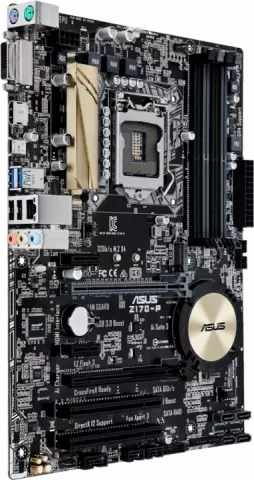

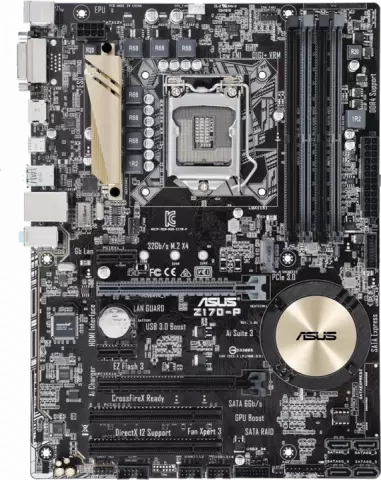

مادربرد Asus DDR4 مدل Z170-P

LGA1151

Intel Z170

Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

DDR4

DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

Un-buffered Memory
Dual Channel Memory Architecture

HDMI / DVI-D

Integrated Graphics Processor- Intel® HD Graphics support

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports Intel® InTru™ 3D

Quick Sync Video

Clear Video HD Technology

Insider™

Supports AMD Quad-GPU CrossFireX™ Technology

1 x M.2 Socket 3

Support Raid 0

1

5

10

Realtek® RTL8111H

1 x Gigabit LAN Controller

Realtek® ALC887

1

1 x USB 5Gb/s port(s) Type-C ( support 3A power output )

ATX

Intel® Z170 chipset :
1 x USB 5Gb/s port(s) port(s) (1 at back panel

Type-C

Reversible

Support 3A power output)
Intel® Z170 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel

Type-A

4 at mid-board)
Intel® Z170 chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel

Type-A

4 at mid-board)

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 for M Key

type 2242/2260/2280 devices
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)

ASUS 5X Protection II :
- ASUS LANGuard - 2.5X higher surge tolerance
- ASUS Overvoltage Protection - World-class circuit-protecting power design
- ASUS DIGI+ VRM - 7 Phase digital power design
- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
ASUS EPU :
- EPU
ASUS Exclusive Features :
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- Low EMI Solution
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 3
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
