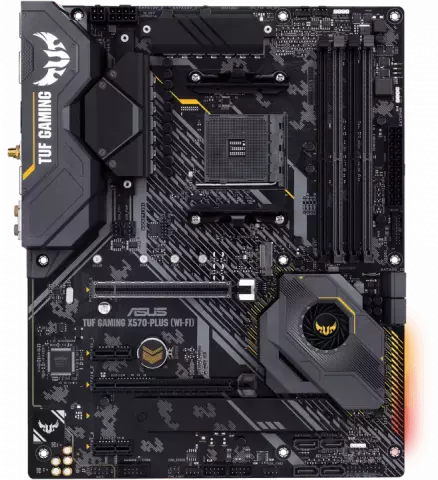

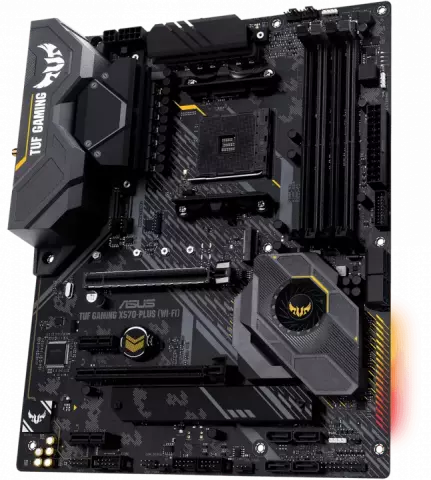

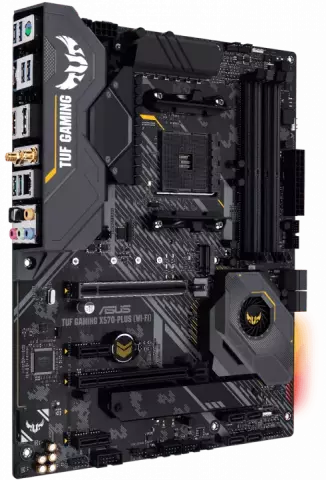

مادربرد ASUS مدل TUF GAMING X570 PLUS (WI-FI)

AM4

1 عدد

AMD X570

AMD Ryzen 2nd Generation/3rd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors

4 عدد

DDR4

3rd Gen AMD Ryzen Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz 2nd Gen AMD Ryzen Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133

128 گیگابایت

Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

HDMI/DisplayPort ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

3rd and 2nd Gen AMD Ryzen Processors AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors Supports AMD CrossFireX Technology

1 عدد

3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

8 عدد

Support Raid 0, 1, 10

Realtek L8200A ASUS Turbo LAN Utility TUF LANGuard

Realtek ALC S1200A 8-Channel High Definition Audio CODEC

3rd Gen AMD Ryzen Processors : 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen Processors : 1 x PCIe 3.0 x16 (x16 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1

1 عدد

1 عدد

1 عدد

1 عدد

5 عدد

1 عدد

4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

ATX

3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)

2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

ASUS TUF PROTECTION ASUS SafeSlot: Protect your graphics card Investment ASUS ESD Guard: Enhanced ESD protection ASUS Overvoltage Protection: World-class circuit-protecting power design ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS DIGI+ VRM: Precision control for stable power ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA : Aura Lighting Control Aura RGB Strip Headers Addressable Gen 2 Header ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS Quiet Thermal Solution : Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink ASUS Fan Xpert 4 ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS Q-Design : ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) ASUS Q-Slot ASUS Q-DIMM DIY Friendly Design Procool SafeSlot Digi+ VRM Highly Durable components ESD Guards

30.50 سانتیمتر

24.40 سانتیمتر
