مادربرد ASUS مدل TUF GAMING H470-PRO

LGA1200

Intel H470

Build in Intel Socket 1200 for 10th Gen Intel Core

Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

DDR4

2933/2800/2666/2400/2133 MHz

non-ECC

un-buffered memory

DisplayPort 1.4/HDMI 1.4b

Supports AMD 2-Way CrossFireX Technology

1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

RAID 0, 1, 5, 10

Intel Rapid Storage Technology supports

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

Intel I219-V 1Gb Ethernet

TUF LANGuard

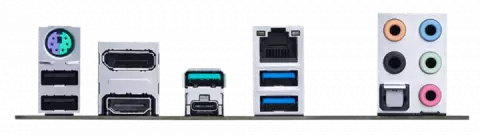

1 × USB Type-C Gen2

1 × USB 3.2 Gen2

2 × USB 3.2 Gen1

2 × USB 2.0

ATX

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x M.2 Socket 3
5 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
