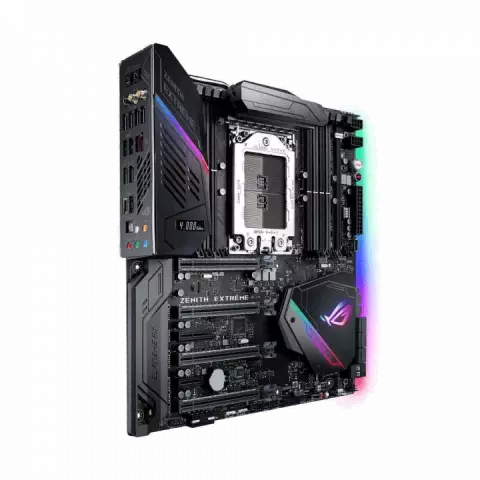

مادربرد Asus DDR4 مدل ROG ZENITH EXTREME

STR4

1 عدد

AMD X399

8 عدد

DDR4

3600(O.C.)/3200(O.C.)/2800(O.C.)/2666/2400/2133 MHz

128 گیگابایت

ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture

Supports NVIDIA 4-Way SLI Technology

Supports AMD 4-Way CrossFireX Technology

1 عدد

2 x M.2 Socket 3, with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x U.2 port

6 عدد

Raid 0, 1, 10

Intel I211-AT, 1 x Gigabit LAN Controller(s)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

4 x PCIe 3.0 x16 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) 1 x PCIe 2.0 x4

1 عدد

1 عدد

8 عدد

1 عدد

5 عدد

1 عدد

1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1)

E-ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x USB 3.1 Gen 2 front panel connector

1 x Aura Addressable Strip Header(s) 1 x ReTry jumper 1 x Safe Boot jumper 1 x U.2 port 2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 2 x 8-pin EATX 8 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x 5-pin EXT_FAN(Extension Fan) connector 1 x Slow Mode switch(es) 2 x Thermal sensor connector(s) 1 x LN2 Mode header(s) 1 x EZ Plug connector(s) (4-pin Molex power connector) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x U.2 connector*4 1 x Slow Mode jumper(s) 1 x System panel connector 1 x PCIe x16 lane switch 2 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x PCIe x16 Lane Switch 1 x 9 pin Monoblock sensor

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - SafeSlot LiveDash OLED AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)

30.50 سانتیمتر

27.70 سانتیمتر
