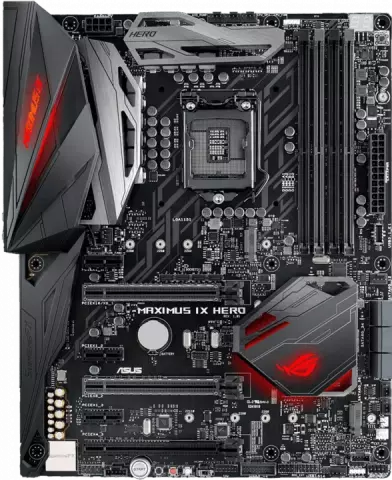

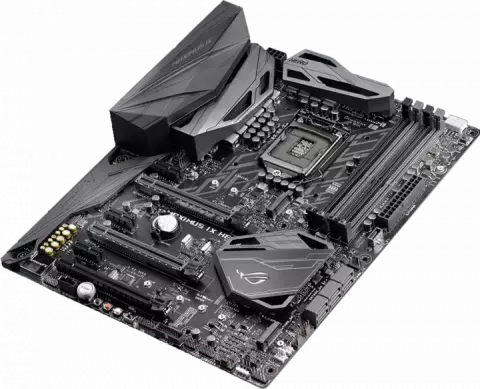

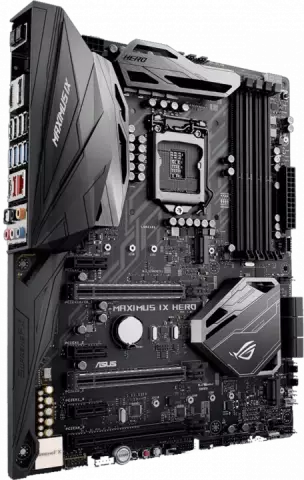

مادربرد Asus DDR4 مدل ROG MAXIMUS IX HERO

LGA1151

1 عدد

Intel Z270

Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU

4 عدد

DDR4

4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz

64 گیگابایت

MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

1.02 گیگابایت

HDMI | DisplayPort

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 3-Way CrossFireX™ Technology

1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® I219V

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

3 x PCIe 3.0/2.0 x16 3 x PCIe 3.0/2.0 x1

1 عدد

1 عدد

1 عدد

4 عدد

1 عدد

5 عدد

1 عدد

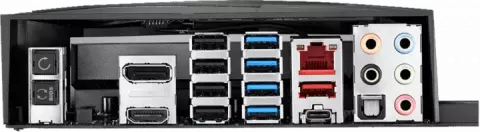

1 x USB 3.1 Gen 2 (red)Type-A 4 x USB 3.1 Gen 1 (blue) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s)

ATX

ASMedia® USB 3.1 controller : 1 x USB 3.1 front panel connector port(s) ASMedia® USB 3.1 controller : 2 x USB 3.1 port(s) (2 at back panel, , Type-A + Type-C) Intel® Z270 Chipset : 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z270 Ch

2 x RGB Header(s) 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x AIO_PUMP connector 1 x Thunderbolt header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Thermal sensor connector(s) 1 x Reset button(s) 1 x LN2 Mode switch(es) 1 x Clear CMOS button(s) 1 x USB BIOS Flashback button(s) 1 x ROG extension (ROG_EXT) header(s) 1 x Safe Boot button 1 x ReTry button 1 x Slow Mode jumper(s) 1 x System panel connector 3 x 3D Mount screw port(s) 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x USB 3.1 Gen 2 front panel connector

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App TPU - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: - SafeSlot ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, VGA, Boot Device LED) - ASUS Q-DIMM - ASUS Q-Connector

30.50 سانتیمتر

24.40 سانتیمتر
