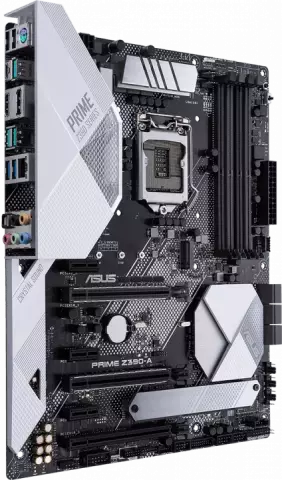

مادربرد ASUS مدل PRIME Z390-A

LGA1151 v2

1 عدد

Intel Z390

9th / 8th Generation Pentium/ Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0

4 عدد

DDR4

4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133

64 گیگابایت

Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

1.02 گیگابایت

DisplayPort / HDMI

Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz

Supports NVIDIA 2-Way SLI Technology

Supports AMD 3-Way CrossFireX Technology

2 عدد

1 عدد

3 عدد

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

6, gray

Support Raid 0, 1, 5, 10

Intel I219V, 1 x Gigabit LAN Controller(s), ASUS Turbo LAN Utility, ASUS LAN Guard

Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

1 عدد

1 عدد

1 عدد

3 عدد

1 عدد

2 عدد

2 عدد

1 عدد

5 عدد

1 عدد

ATX

1 x USB 3.1 Gen 1 front panel TypeC connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)

2 x Aura RGB Strip Headers 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x W_PUMP+ connector 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! II switch(es) 1 x CPU OV 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x EXT_Fan header 1 x Thermal sensor connector 1 x M.2 Fan Header

5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App - Procool Power connector design TPU - Auto Tuning, TPU, GPU Boost Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! ASUS Optimem II： - Improved DDR4 Stability ASUS EPU : - EPU ASUS Exclusive Features : - MemOK! II - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY : - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector AURA: RGB Lighting Control Turbo APP - featuring system performance tuning for selected applications M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

30.50 سانتیمتر

24.40 سانتیمتر
