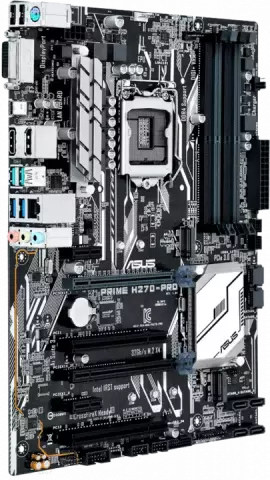

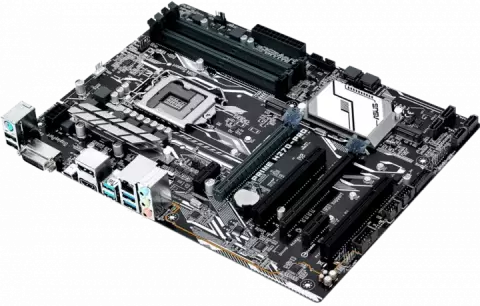

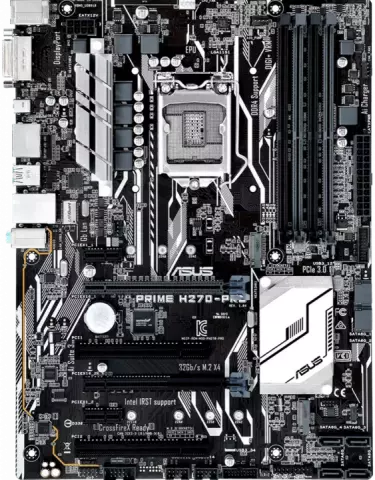

مادربرد Asus DDR4 مدل PRIME H270-PRO

LGA1151

Intel H270

Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU

DDR4

DDR4 2400/2133 MHz

Non-ECC

Un-buffered Memory
Dual Channel Memory Architecture

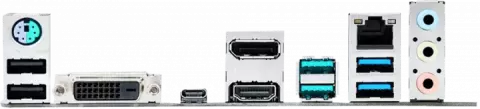

HDMI/DVI-D/DisplayPort 1.2 ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Supports AMD CrossFireX™ Technology

1 x M.2 Socket 3

with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3

with M Key

type 2242/2260/2280/22110 storage devices support (both SATA & x2 PCIE mode)

Support Raid 0

1

5

10

Intel® I219V

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1

1 x USB 5Gb/s port(s) Type-C ( support 3A power output )

ATX

ASMedia® USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel

+teal blue

Type-A)
Intel® H270 Chipset :
1 x USB 5Gb/s port(s) port(s)
Intel® H270 Chipset :
6 x USB 3.0 port(s) (2 at back panel

+blue)
Intel® H270 Chipset :
6 x USB 2.0 port(s) (2 at

2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key

type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3

ASUS 5X Protection III :
ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges!
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS
