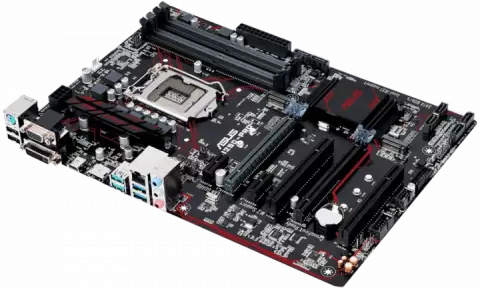

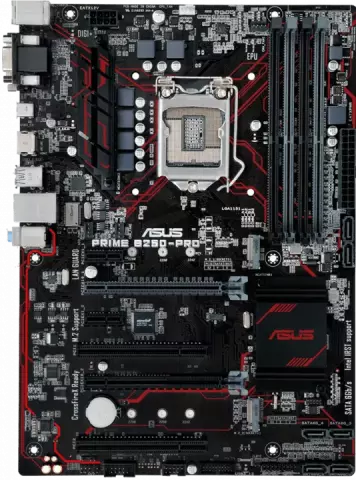

مادربرد ASUS مدل PRIME B250-PRO

LGA1151

Intel B250

Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU

DDR4

DDR4 2400/2133 MHz

Non-ECC

Un-buffered Memory
Dual Channel Memory Architecture

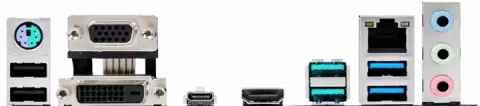

HDMI/DVI-D/RGB ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Supports AMD CrossFireX™ Technology

1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

Realtek® RTL8111H

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1

1 x USB 5Gb/s port(s) Type-C ( support 3A power output )

ATX

ASMedia® USB 3.1 controller : 2 x USB 3.1/3.0/2.0 port(s) (2 at back panel

teal blue

Type-A)
Intel® B250 Chipset : 1 x USB 3.0/2.0 port(s) (1 at back panel

Type-C

Reversible

Support 3A power output)
Intel® B250 Chipset : 4 x USB 3.0/2.0 port(s) (2

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)

ASUS 5X Protection III :
ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges!
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS
