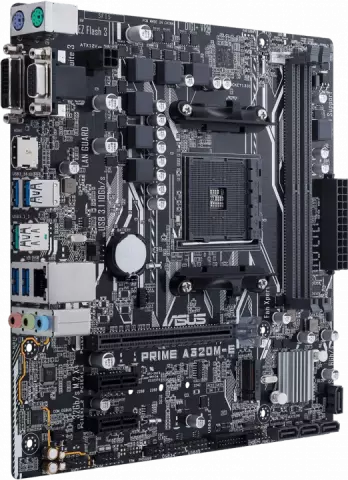

مادربرد ASUS مدل PRIME A320M-E

AM4

AMD A320

AMD Ryzen 2nd Generation/Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/Ryzen 1st Generation/7th Generation A-series/Athlon X4 Processors
Supports CPU up to 8 cores

DDR4

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz
AMD 7th Generation A-Series/Athlon X4 Processors :
2400/2133 MHz

ECC and non-ECC

Un-buffered Memor
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU

HDMI/DVI-D/RGB ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

AMD Ryzen 2nd Generation/ Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors :
1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4Processors :
1 x M.2 Socket 3

with M key

type 2242/2260/2280 storage devices support (SATA mode)

Support Raid 0

1

10

Realtek RTL8111H

1 x Gigabit LAN Controller(s)

Realtek ALC887 8-Channel High Definition Audio CODEC

1 x DVI-D

mATX

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x M.2 Socket 3 with M key

type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector

ASUS 5X Protection III :
ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
ASUS LANGuard: Protects against LAN surges

lightning strikes and static-electricity discharges!
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
AI Suite 3
Ai Charger
ASUS Quiet Thermal Solution :
Stylish Fanless Design Heat-sink solution
ASUS Fan Xpert
ASUS EZ DIY :
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
Multi-language BIOS
ASUS Q-Design :
ASUS Q-Slot
ASUS Q-DIMM
