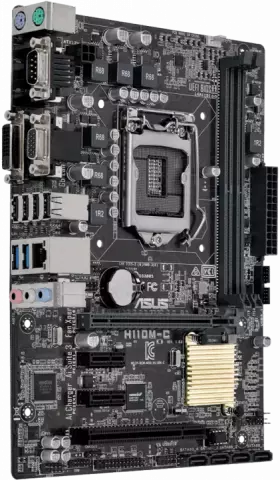

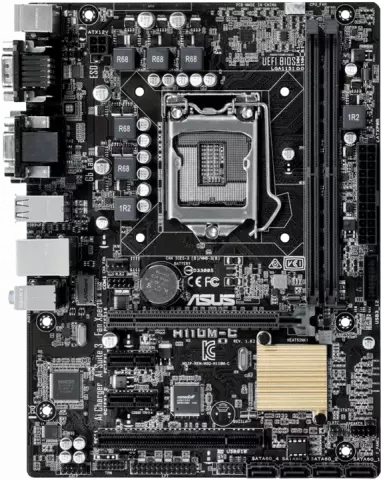

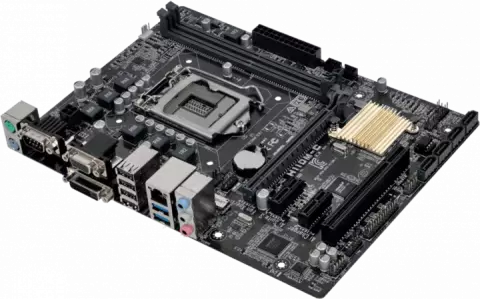

مادربرد ASUS مدل H110M-C

LGA1151

Intel H110

Intel for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors

DDR4

DDR4 2400 MHz

non-ECC

un-buffered memory

DVI-D / RGB ports

Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

Realtek® RTL8111H

1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1

1 x COM port(s)

mATX

Intel® H110 chipset :

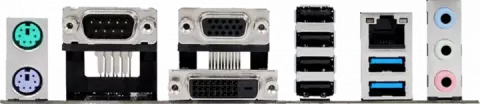

4 x USB 3.0/2.0 port(s) (2 at back panel

blue

2 at mid-board)
Intel® H110 chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel

black

2 at mid-board)

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x 14-1 pin TPM connector

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x 14-1 pin TPM connector
