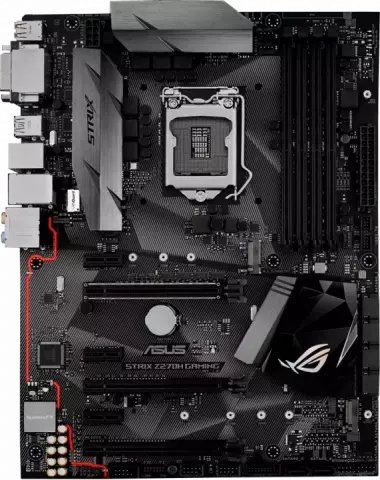

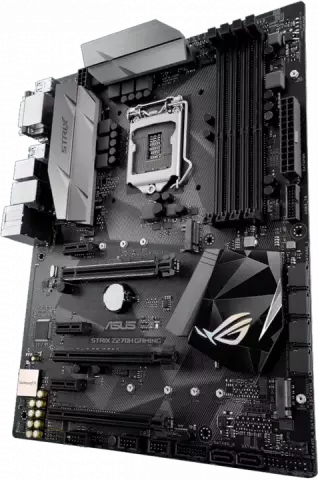

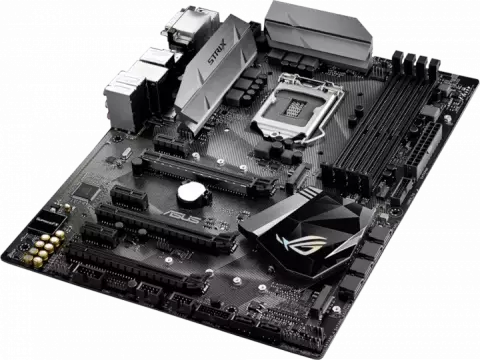

مادربرد Asus DDR4 مدل GAMING ROG STRIX Z270H

LGA1151

1 عدد

Intel Z270

Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0

4 عدد

DDR4

3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz

64 گیگابایت

Non-ECC, Un-buffered, Register Memory Dual Channel Memory Architecture

1.02 گیگابایت

HDMI / DVI ports

3 عدد

Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Supports NVIDIA® 2-Way SLI™ Technology

Supports AMD 2-Way CrossFireX Technology

3 عدد

Intel® Z270 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (x2 mode)

1 عدد

1

1 عدد

2 عدد

2 عدد

1 عدد

5 عدد

1 عدد

4 x USB 3.1 Gen 1

ATX

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x AAFP connector 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x CPU_OV jumper

5-Way Optimization by Dual Intelligent Processors 5 Gamer's Guardian: - ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - ASUS Fan Xpert 4 Core ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - 3D printing friendly Digi+VRM

30.50 سانتیمتر

23.40 سانتیمتر
