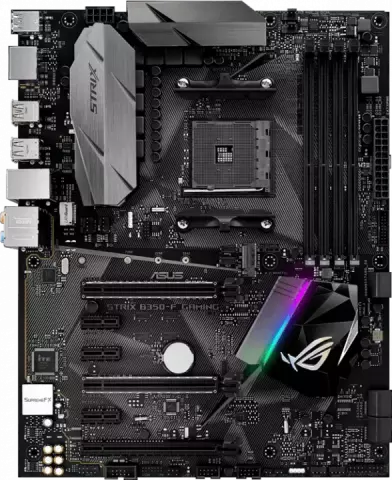

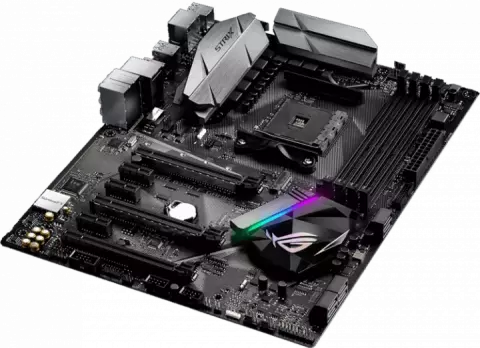

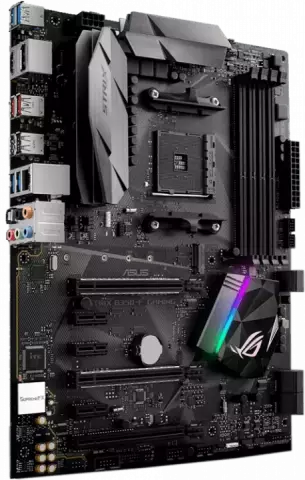

مادربرد Asus DDR4 مدل GAMING ROG STRIX B350-F

AM4

1 عدد

AMD B350

AMD Ryzen/7th Generation A-series/Athlon Processors Supports AM4 Socket 14 nm CPU Supports CPU up to 8 cores

4 عدد

DDR4

3200(O.C.)/2933(O.C.)/2666/2400/2133 MHz

64 گیگابایت

2.05 گیگابایت

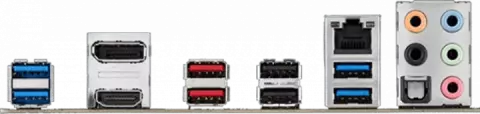

HDMI/DisplayPort ports

Supports HDMI 1.4b with max. resolution 4096 x 2160 24 Hz / 2560 x 1600 60 Hz Supports DisplayPort 1.2 with max. resolution 4096 x 2160 60 Hz

Supports AMD 3-Way CrossFireX Technology

1 عدد

3 عدد

4 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

Intel I211-AT, 1 x Gigabit LAN Controller(s)

ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A

1 عدد

1 عدد

2 عدد

4 عدد

2 عدد

1 عدد

5 عدد

1 عدد

ATX

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x RGB Header(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x TPM connector(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector

5-Way Optimization by Dual Intelligent Processors 5 Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU Auto Tuning, TurboV, GPU Boost Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors Gamer's Guardian: ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports DRAM Overcurrent Protection Stainless Steel Back I/O Highly Durable Components DIGI+ VRM SafeSlot ASUS EPU : EPU AURA : Aura Lighting Control ASUS Exclusive Features : AI Suite 3 Ai Charger ASUS EZ DIY : ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS Q-Design : ASUS Q-Shield ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) ASUS Q-Slot ASUS Q-DIMM Gaming Aesthetics : AURA-RGB Lighting Digi+VRM

30.50 سانتیمتر

24.40 سانتیمتر
