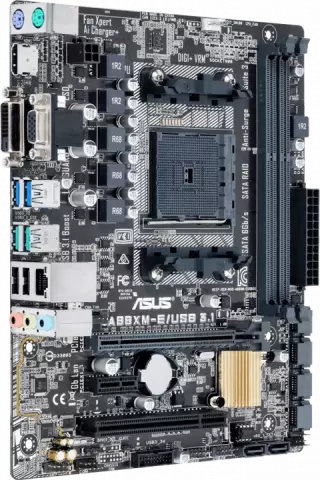

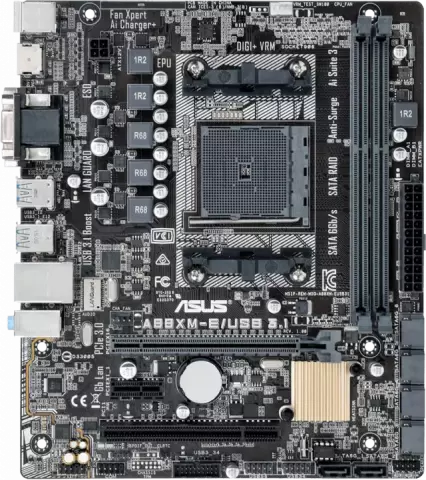

مادربرد Asus DDR3 مدل A88XM-E/USB 3.1

FM2+

1 عدد

AMD A88X

AMD Socket FM2+ Athlon™/A- Series Processors Supports CPU up to 4 cores

2 عدد

DDR3

2400(O.C.)/2133/1866/1600/1333 MHz

32 گیگابایت

Non-ECC, Un-buffered Memory Dual Channel Memory Architecture

2 گیگابایت

HDMI / DVI / RGB ports

Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1200 @ 60 Hz*1 Supports DVI with max. resolution 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1600 @ 60 Hz

1 عدد

1 عدد

6 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10, JBOD

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC

1 x PCIe 3.0/2.0 x16

1 عدد

1 عدد

1 عدد

1

1 عدد

2 عدد

1 عدد

3 عدد

2 x USB 3.1 Gen 2 (teal blue) 2 x USB 3.1 Gen 1 (blue)

mATX

ASMedia® USB 3.1 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue) AMD A88X FCH(Bolton D4) chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) AMD A88X FCH(Bolton D4) chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Internal speaker connector(s) 1 x System panel(s)

ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS DIGI+ VRM - 5 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger+ - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - USB 3.1 Boost - Disk Unlocker - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot

22.60 سانتیمتر

19.05 سانتیمتر
